Unimat DB/SL Replacement  Motor
Best kept secret ?

 As we all are aware, these machines are getting old. The original motors are wearing out, some beyond repair. The price for used motors on Ebay reflects this. Here again an old used motor.
 Over the years, Unimat users have Emailed pix of their replacement motors. The range was from  1/2 HP 56 frame ( large ) AC motors to sewing machine motors. I say, that's great. This is a hobby machine and what ever works is fine.
 For myself, I have modified about half dozen different motors, mostly Universal AC/ DC series wound. Like the original motors.
 These high RPM motors  ( 10,000 to 12,000 RPM ) were noisy and produce their torque at max speed, therefore any attempt to control           ( reduce ) the motors speed is accompanied  with a  rapid decline in torque. I wanted something better.

About ten years ago I modified a commercial PMDC ( permanent magnet DC ) motor to accept the original pulley and mount up to the motor bracket using the original  holes / screws. To drive the motor a complementary  SCR ( DC )speed control package was developed.
The results were not unlike  the Sherline lathe or even the 7" X 12" ' mini lathe ' , motor / control packages.

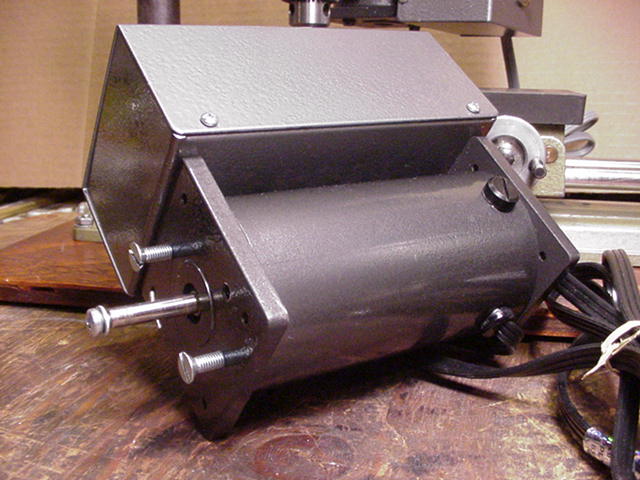

The motor package in the picture above has been in use for seven years ( the belt for nine years ).

 The motor has ball bearings, long life brushes and rated for continuous duty. The SCR speed control produces almost pure DC
with form factor close to 1. Both are UL rated and made in the USA.
 Speed control is mounted in aluminum box for heat dissipation has ON / OFF switch, internal replaceable fuse and four foot 120 volt AC cord / plug. Control box is mounted to motor. Input: 120 VAC 50/60 Hertz,  2 amps..

On balance, the objective  was to provide a smooth, quite, long life, variable speed motor. Which was comparable in weight and dimensions with the OEM motor. PMDC motors by their very design are heaver motors
PMDC motors have the opposite torque curve of Universal AC/DC motors ( original Unimat motors ).
With a PMDC motor, as load is applied the torque increases and can be three to four times rated torque as stall is approached. Making it an excellent choice for this application.

Here are more pix of motor / controller mounted and in use.
Motor package spec:  Motor rated 1/9 HP. 90 VDC. Speed control is adjusted  for no load output of 700 to 3300 RPM. The machine above uses one  large drive belt from middle motor pulley to middle spindle pulley gives spindle speed of 280 to 1300 RPM.  Other belt / pulley configurations can be used .
This is a plug and play package. Motor shaft has pulley stop pin installed, ready to accept your motor pulley. Included are motor mount screws and pulley mount screw with washer. Speed control is preadjusted. These are assembled in my work shop, to order.

Price is $355.00 USD plus $15 S/H, USA    International email for shipping cost.

If interested please contact me via email to check availabilty or lead time and shipping cost.

Keep in mind. This package is best suited for turning / drilling / milling  for precision work, in keeping with the original intent of the Unimat.
 Giving you a powerful  ( most torque of any replacement motor for the Unimat ), variable speed motor  with smooth-quite operation. Making your DB/Sl more fun and comfortable to use.
